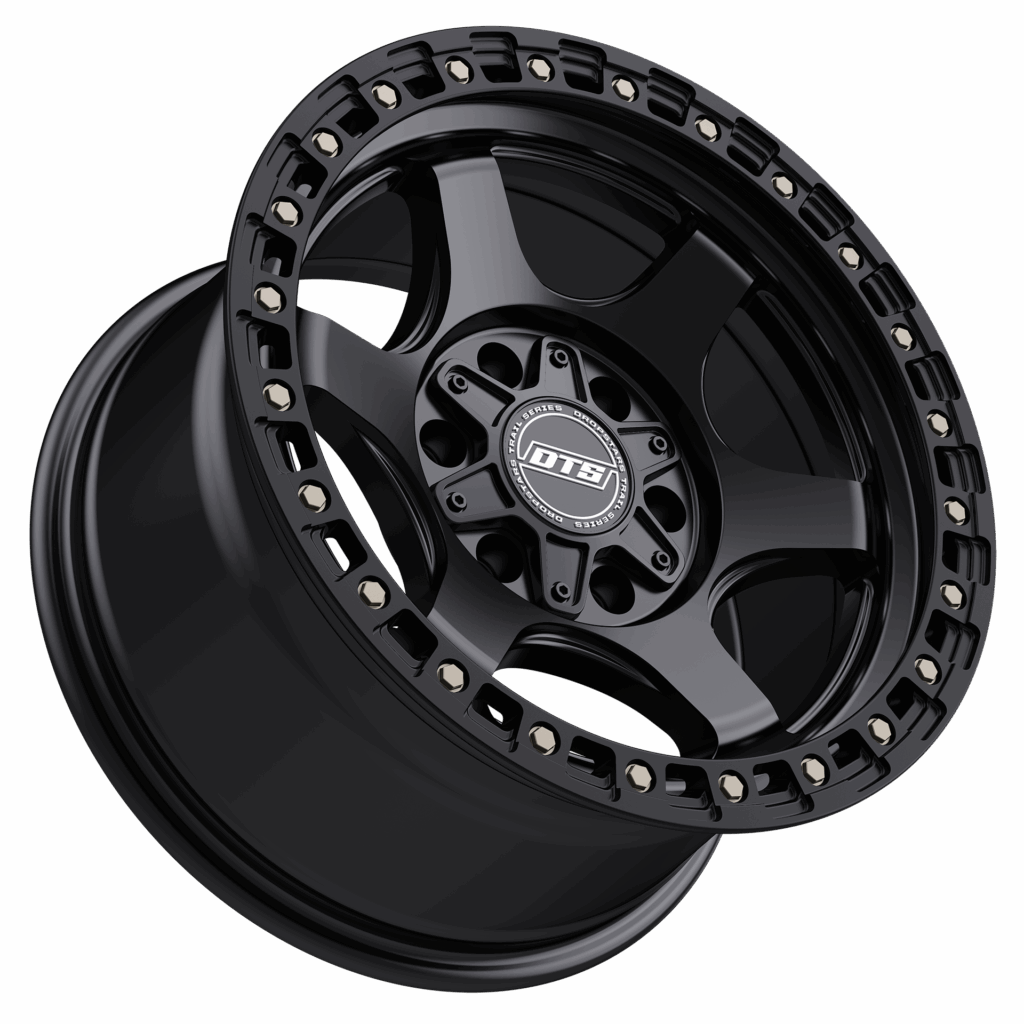

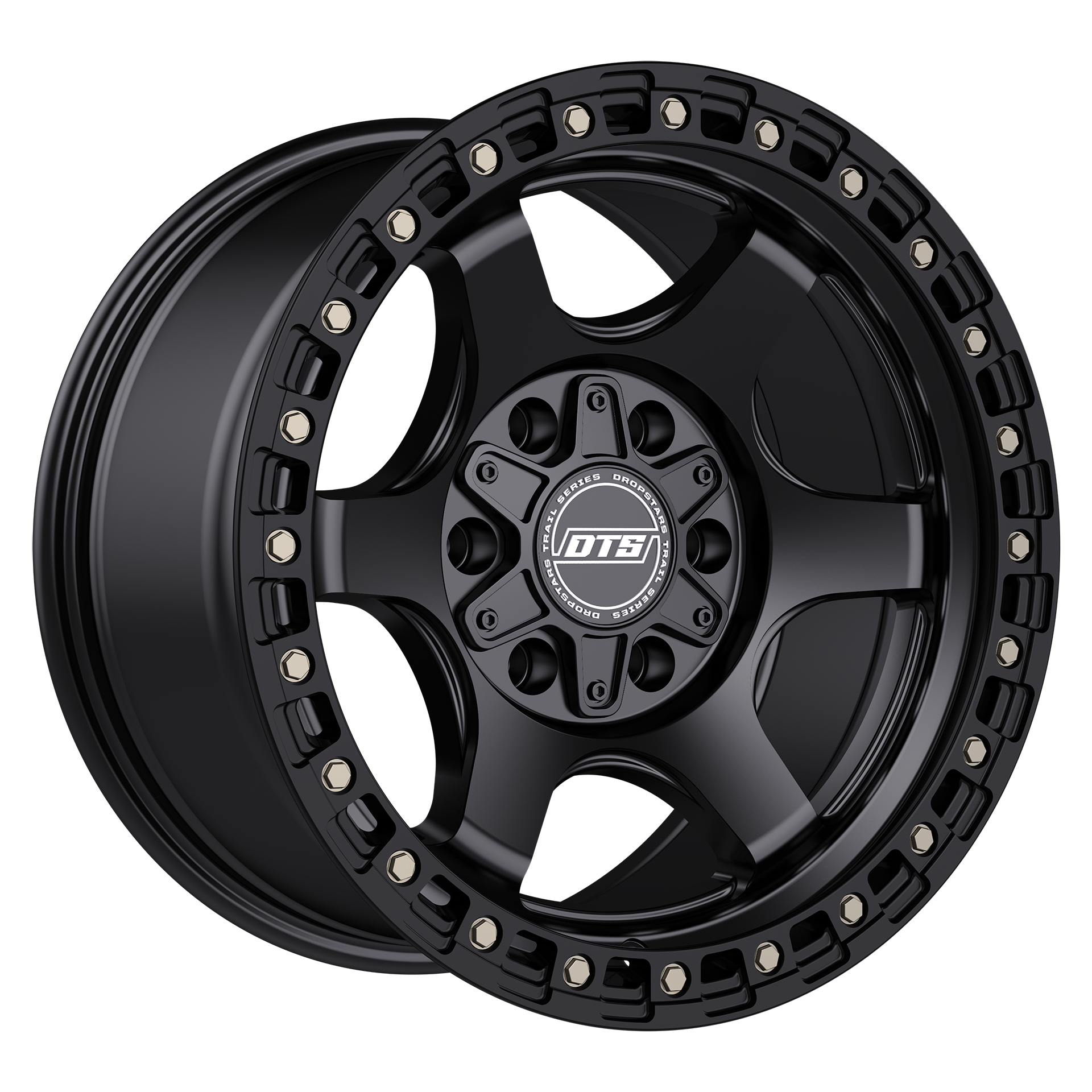

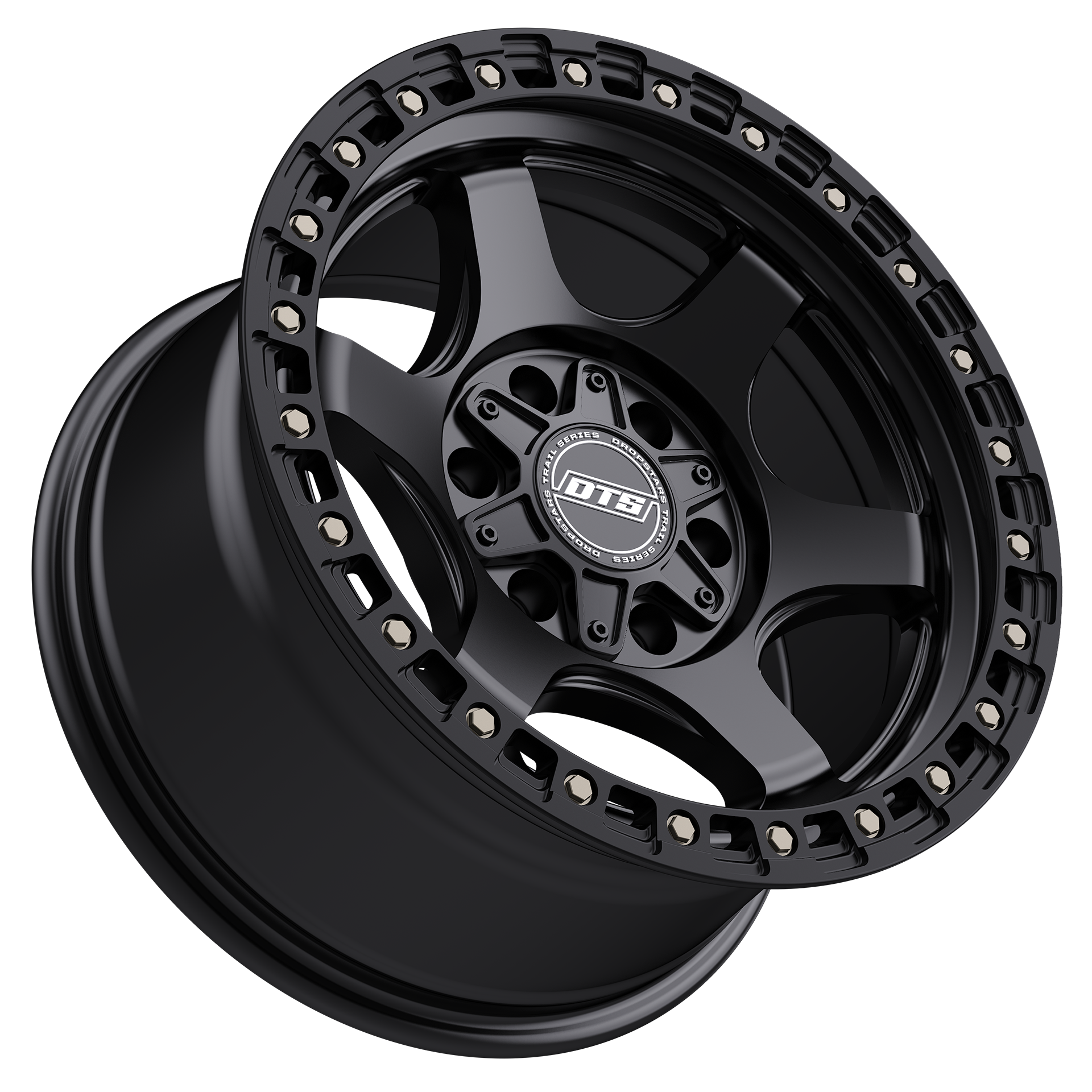

604
DROPSTARS TRAIL SERIES
WHEEL STYLE

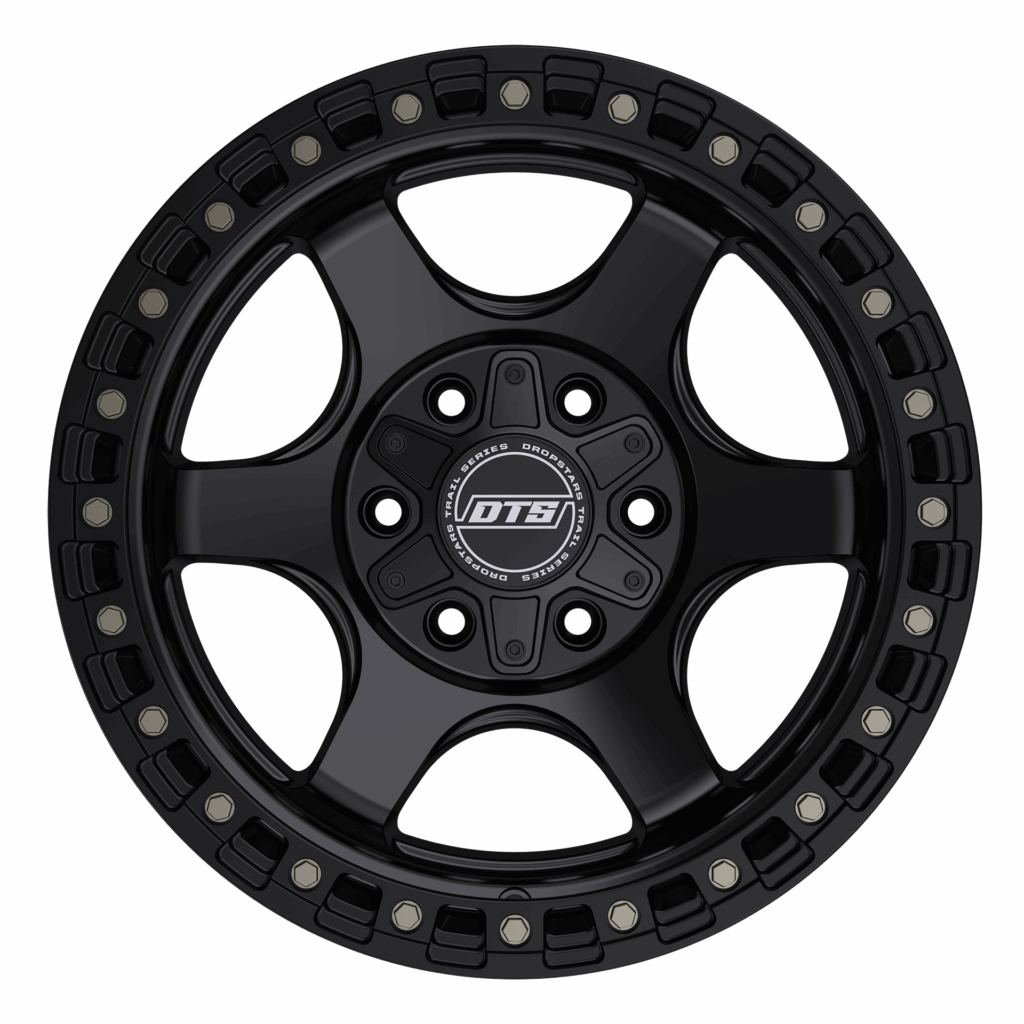

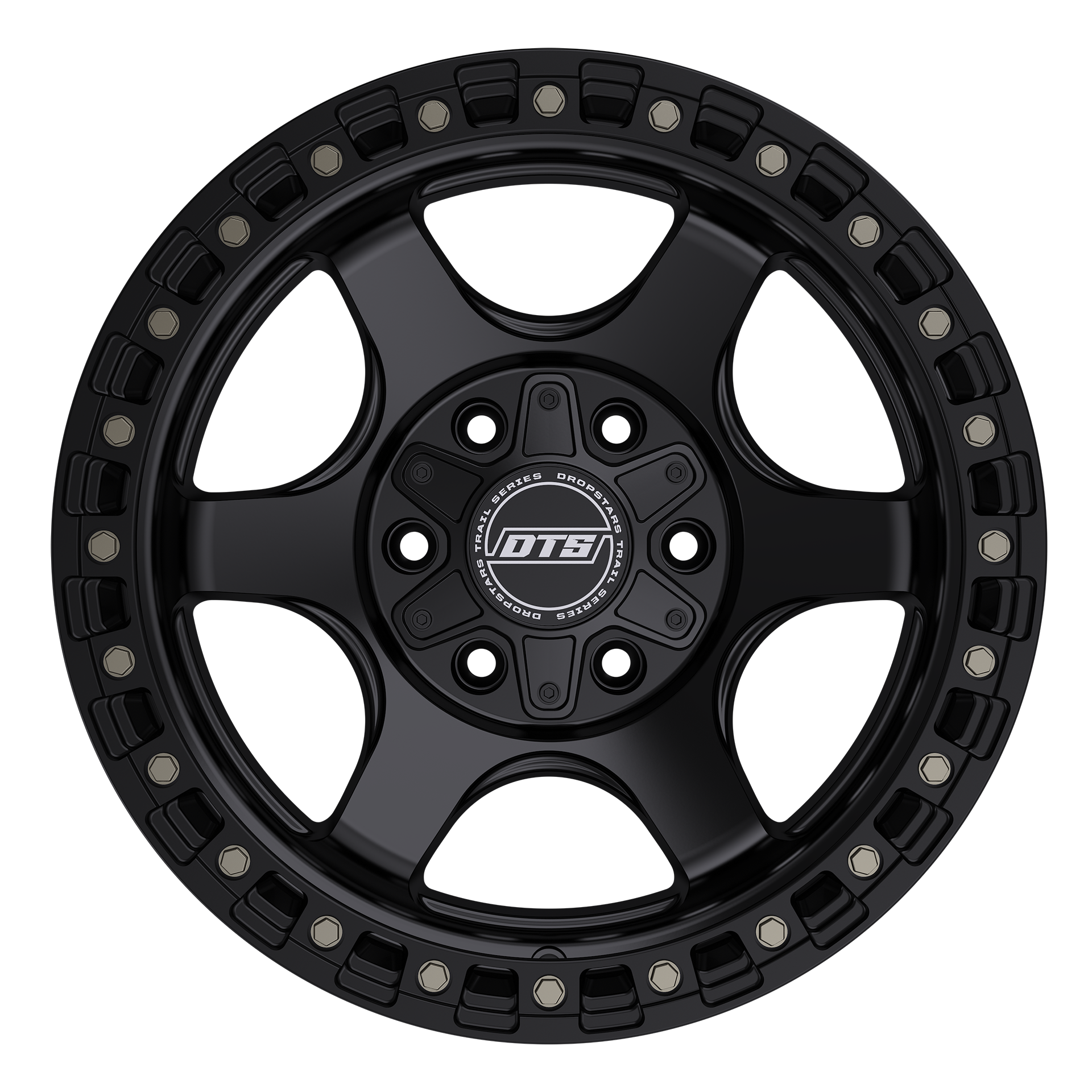

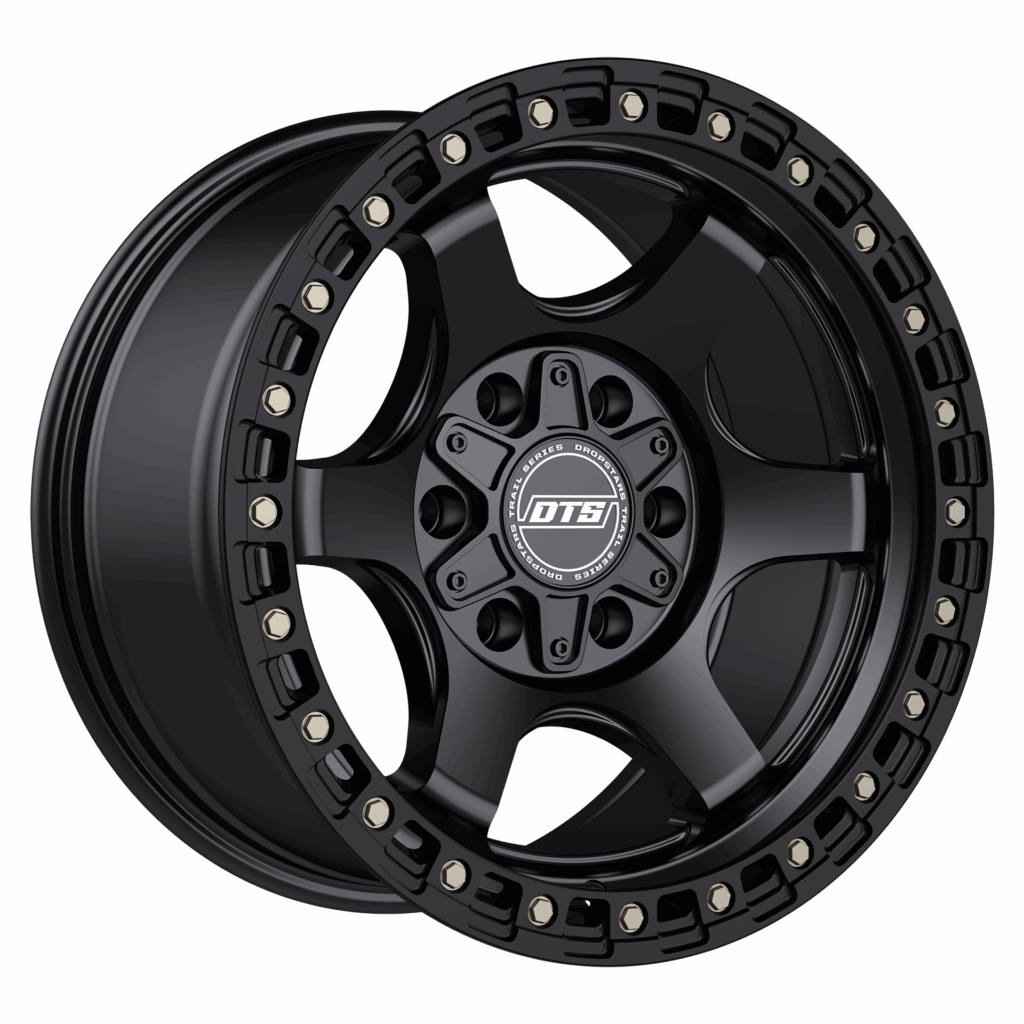

604SB
SATIN BLACK
PATENT PENDING
The Dropstars Trail Series 604 is a semi-concave solid 5 spoke design with a rugged multi-bolt beadlock design. Every DTS wheel features the 5 or 6 point centercap and DTS circular emblem.
| Style | Size | Offset | MAP |
| 604SB | 16×8 | 0 | $282 |
| 604SB | 17×9 | -12 | $315 |
| 604SB | 20×9 | 18 | $365 |
| 604SB | 20×10 | -19 | $382 |
604SB SPECS
| Part Number | Style | Finish Name | Size | Lugs | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 604SB-7900912 | 604SB | Satin Black | 17X9 | 5 | 5X5.00 / 5X5.50 | -12 | 4.52 | 78.1 | 2500 | 27 |
| 604SB-7906812 | 604SB | Satin Black | 17X9 | 6 | 6X135 / 6X5.50 | -12 | 4.52 | 106.2 | 2500 | 27 |
| 604SB-2100919 | 604SB | Satin Black | 20X10 | 5 | 5X5.00 / 5X5.50 | -19 | 4.75 | 78.1 | 2500 | 38 |
| 604SB-2106819 | 604SB | Satin Black | 20X10 | 6 | 6X135 / 6X5.50 | -19 | 4.75 | 106.2 | 2500 | 38 |
| 604SB-2096800 | 604SB | Satin Black | 20X9 | 6 | 6X135 / 6X5.50 | +00 | 5 | 106.2 | 2500 | 36 |
| 604SB-2096818 | 604SB | Satin Black | 20X9 | 6 | 6X135 / 6X5.50 | +18 | 5.71 | 106.2 | 2500 | 36 |

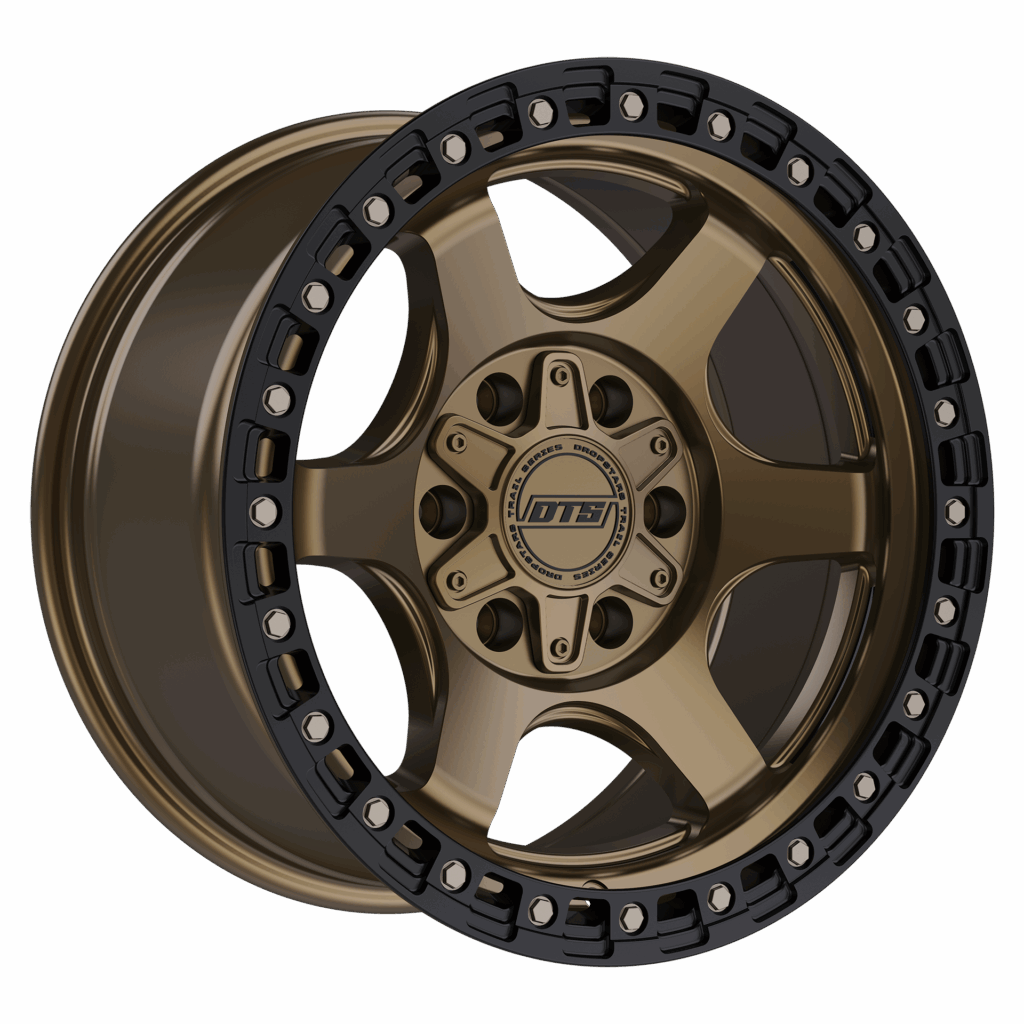

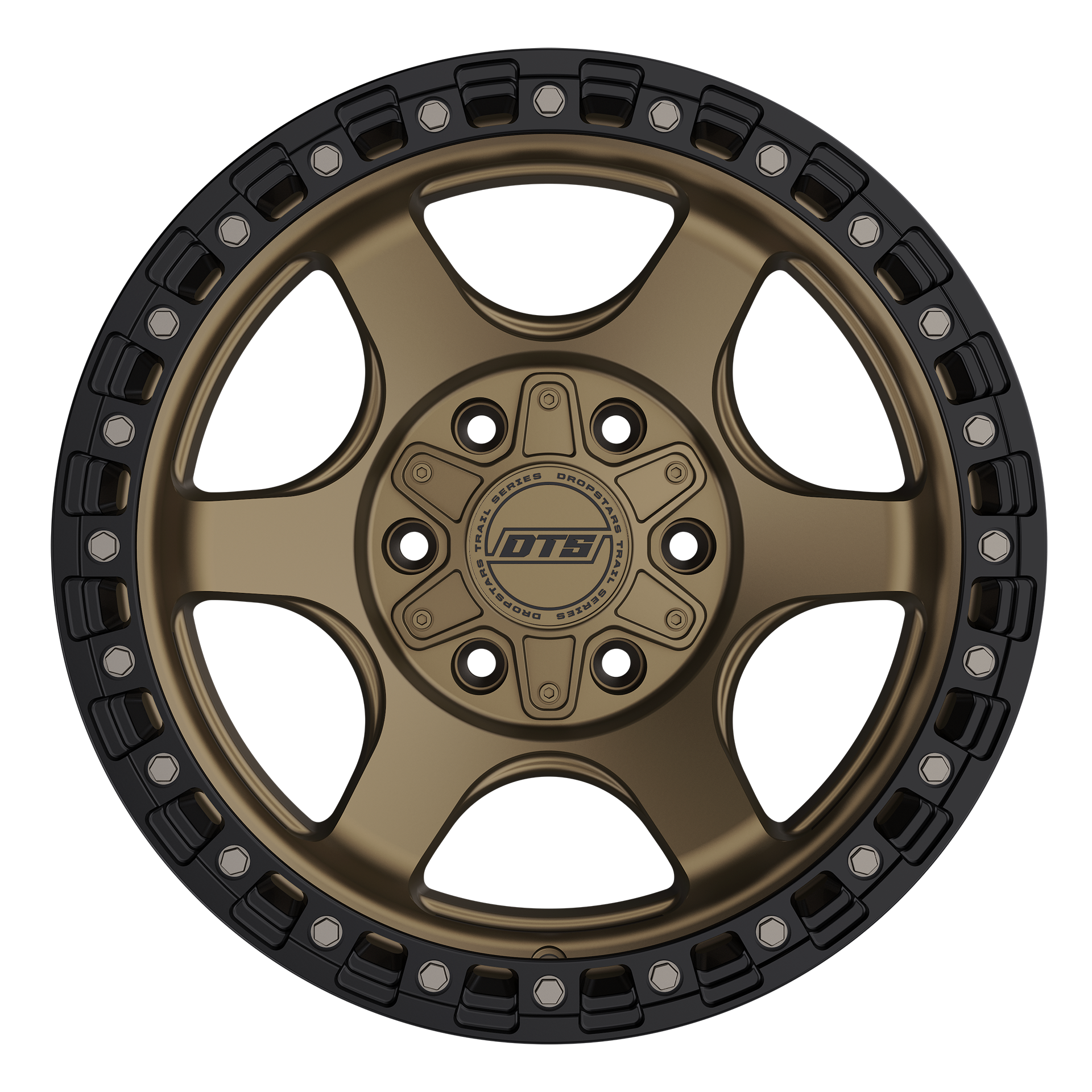

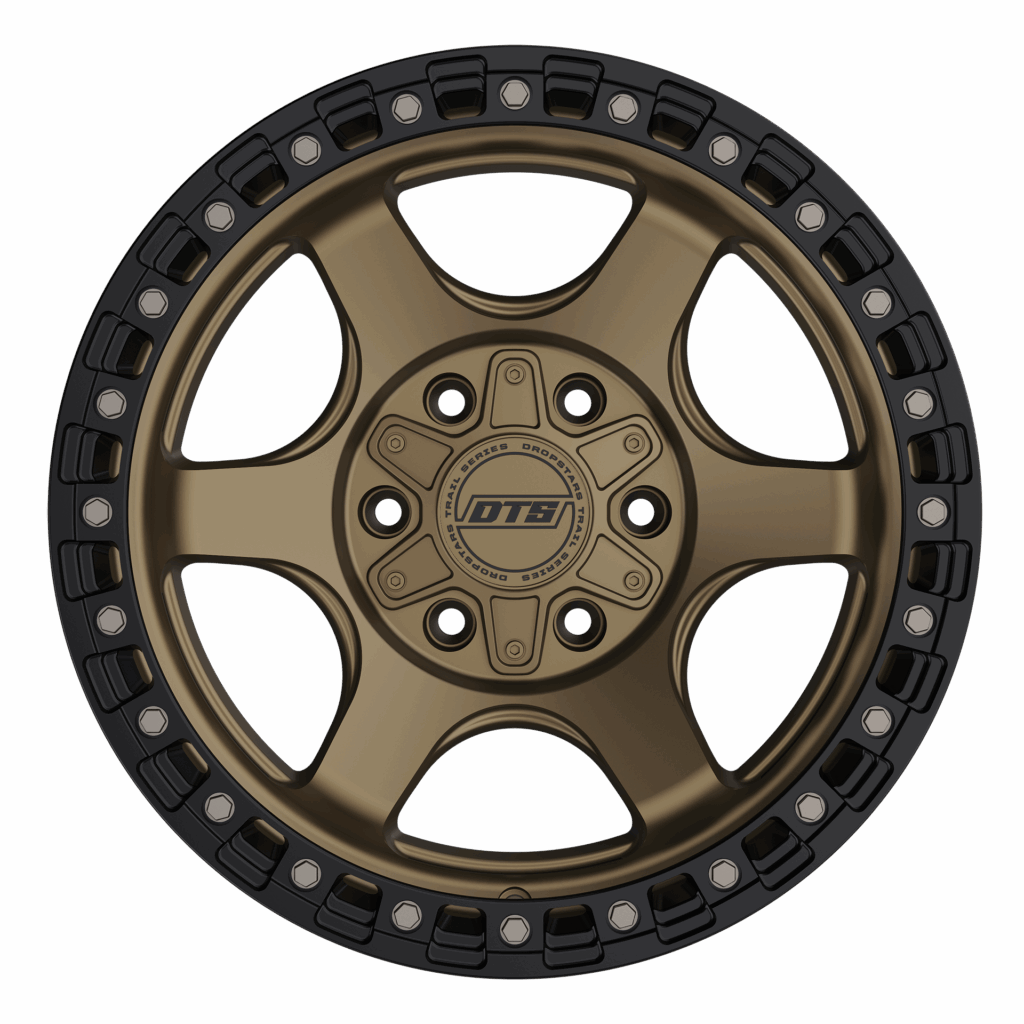

WHEEL STYLE

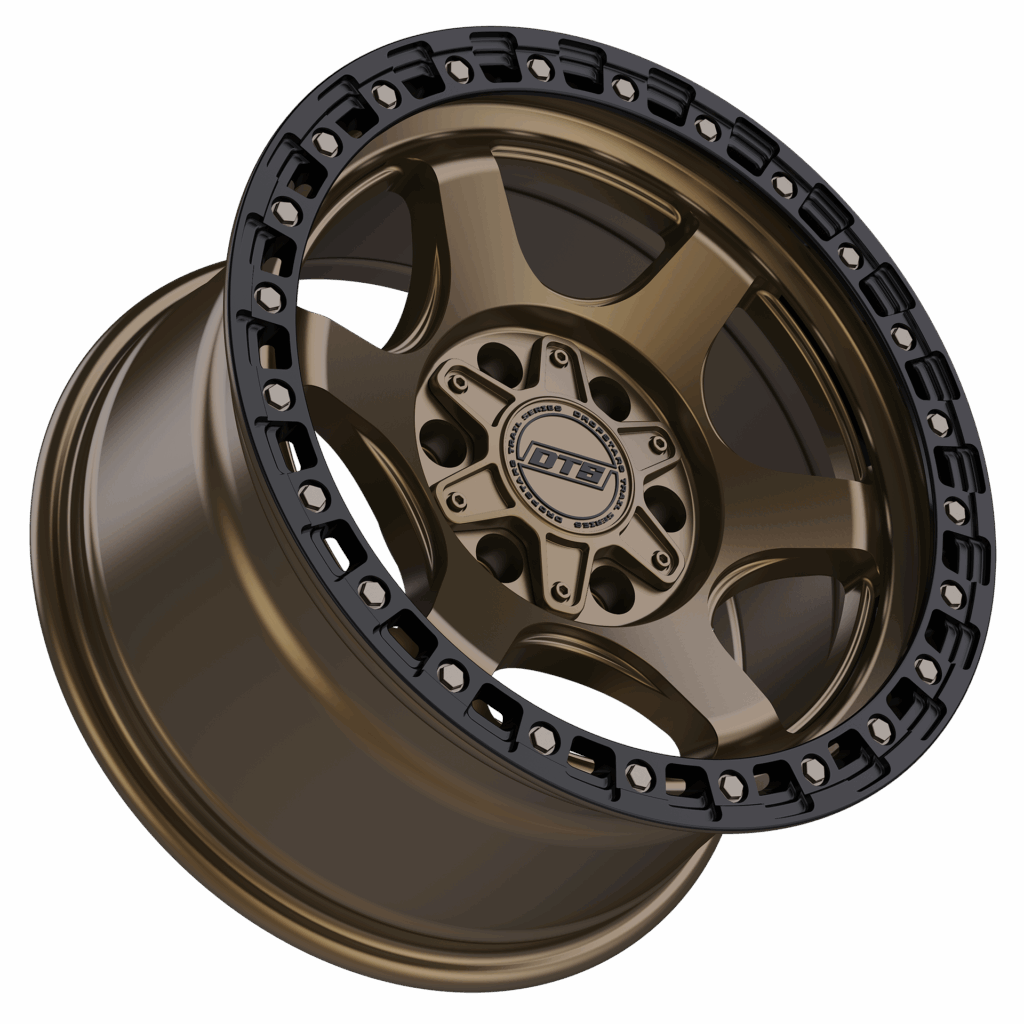

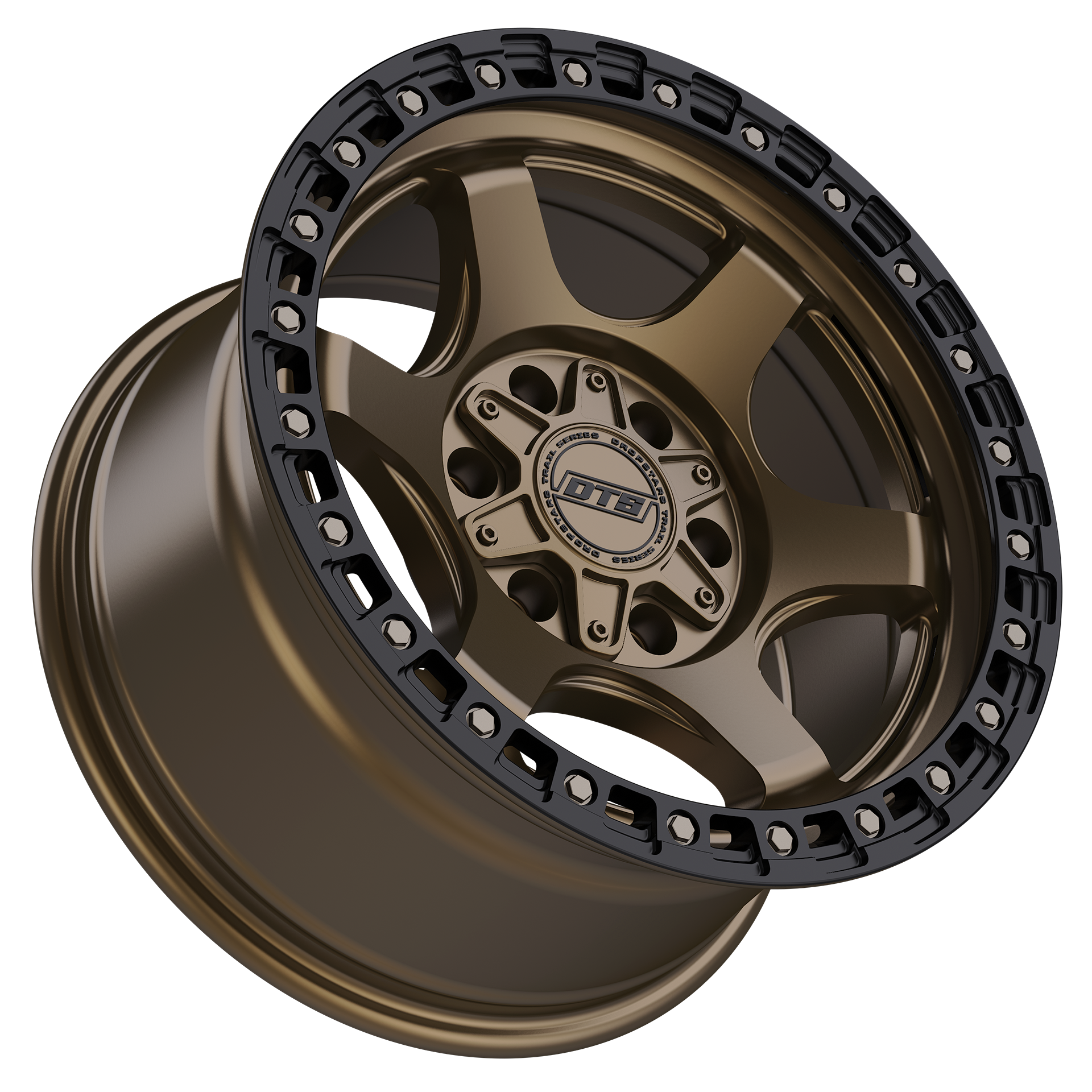

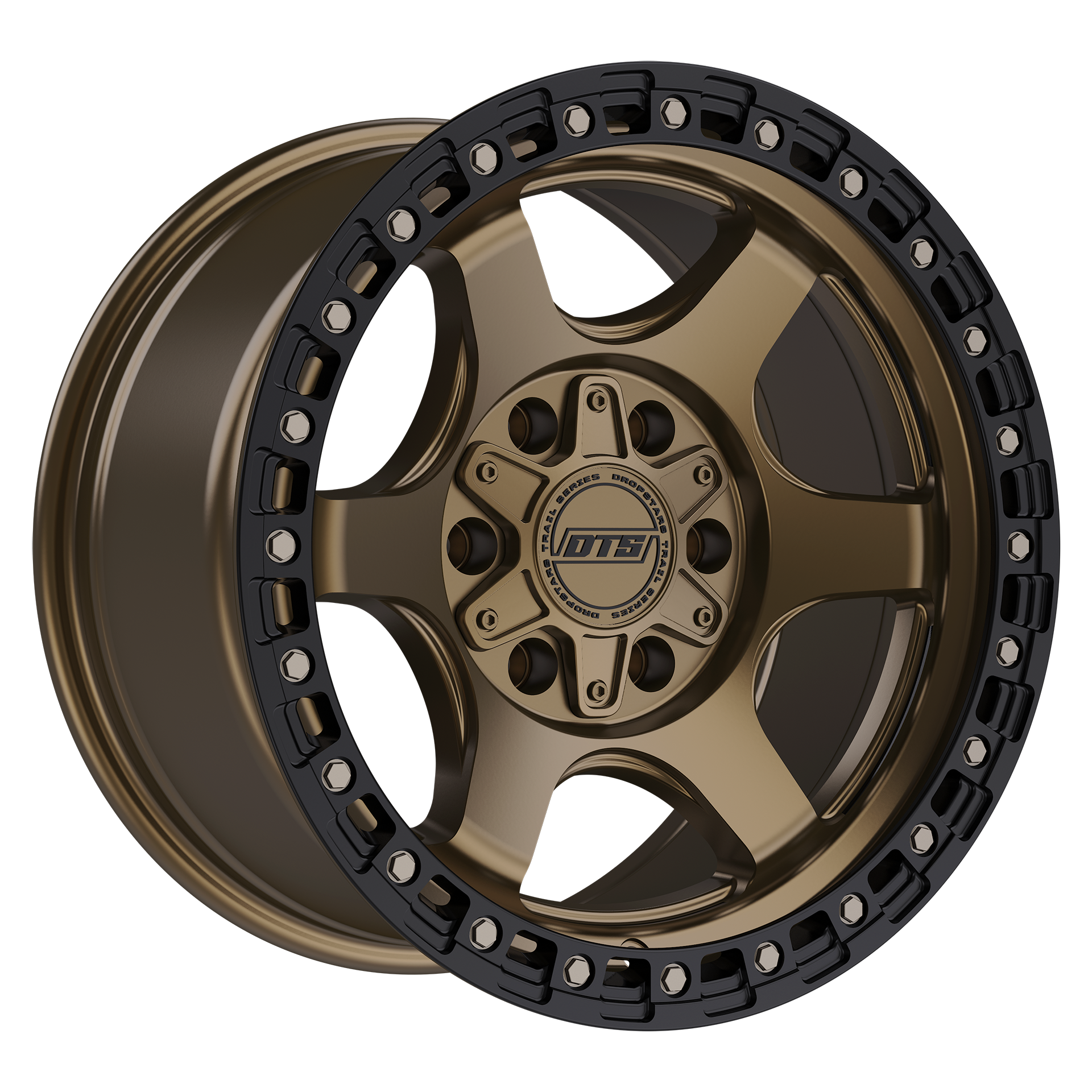

604BZB
SATIN BRONZE
PATENT PENDING
The Dropstars Trail Series 604 is a semi-concave solid 5 spoke design with a rugged multi-bolt beadlock design. Every DTS wheel features the 5 or 6 point centercap and DTS circular emblem.
| Style | Size | Offset | MAP |
| 604BZB | 17×9 | -12 | $315 |
| 604BZB | 20×9 | -20 | $365 |
| 604BZB | 20×10 | -19 | $382 |
604BZB SPECS
| Part Number | Style | Finish Name | Size | Lugs | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 604BZB-7900912 | 604BZB | Satin Bronze w/ Black Ring | 17X9 | 5 | 5X5.00 / 5X5.50 | -12 | 4.52 | 78.1 | 2500 | 27 |
| 604BZB-7906812 | 604BZB | Satin Bronze w/ Black Ring | 17X9 | 6 | 6X135 / 6X5.50 | -12 | 4.52 | 106.2 | 2500 | 27 |
| 604BZB-2100919 | 604BZB | Satin Bronze w/ Black Ring | 20X10 | 5 | 5X5.00 / 5X5.50 | -19 | 4.75 | 78.1 | 2500 | 38 |
| 604BZB-2106819 | 604BZB | Satin Bronze w/ Black Ring | 20X10 | 6 | 6X135 / 6X5.50 | -19 | 4.75 | 106.2 | 2500 | 38 |
| 604BZB-2096800 | 604BZB | Satin Bronze w/ Black Ring | 20X9 | 6 | 6X135 / 6X5.50 | +00 | 5 | 106.2 | 2500 | 36 |
| 604BZB-2096820 | 604BZB | Satin Bronze w/ Black Ring | 20X9 | 6 | 6X135 / 6X5.50 | -20 | 4.21 | 106.2 | 2500 | 36 |

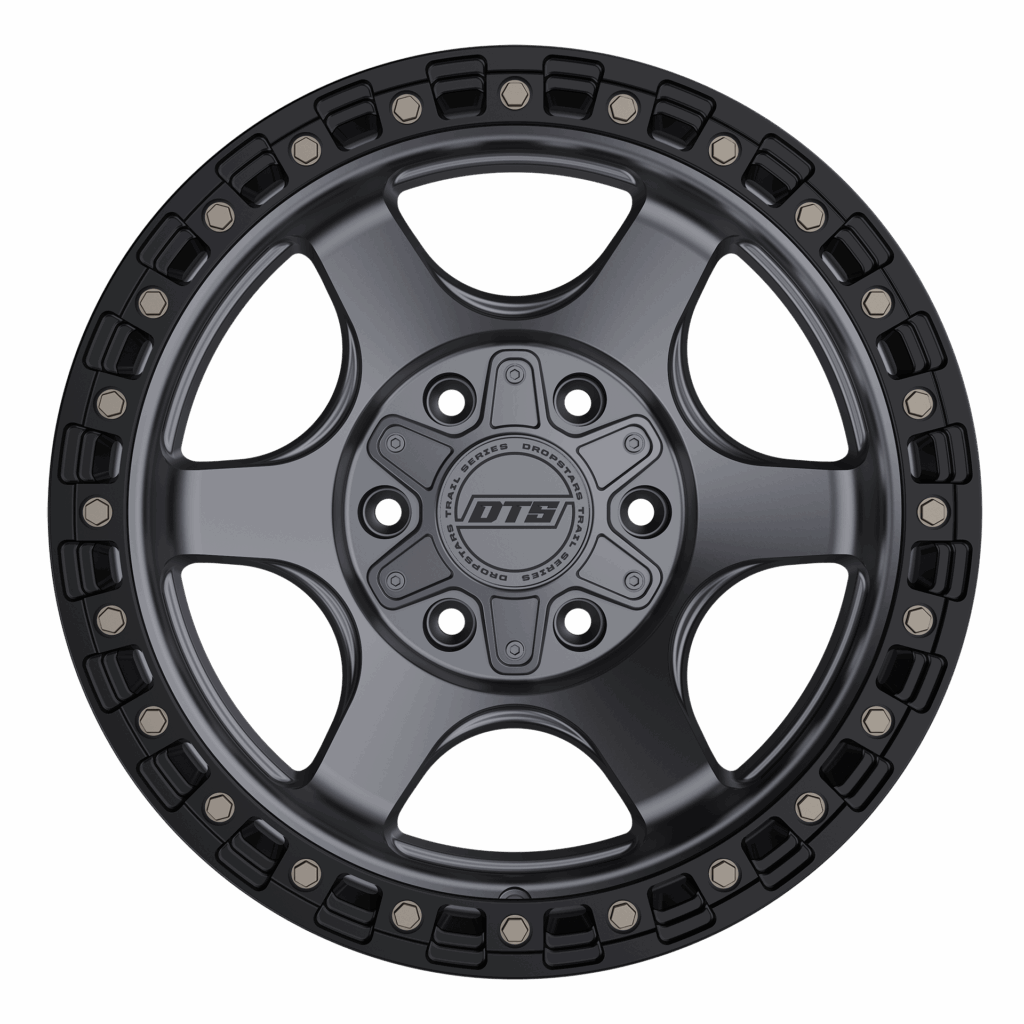

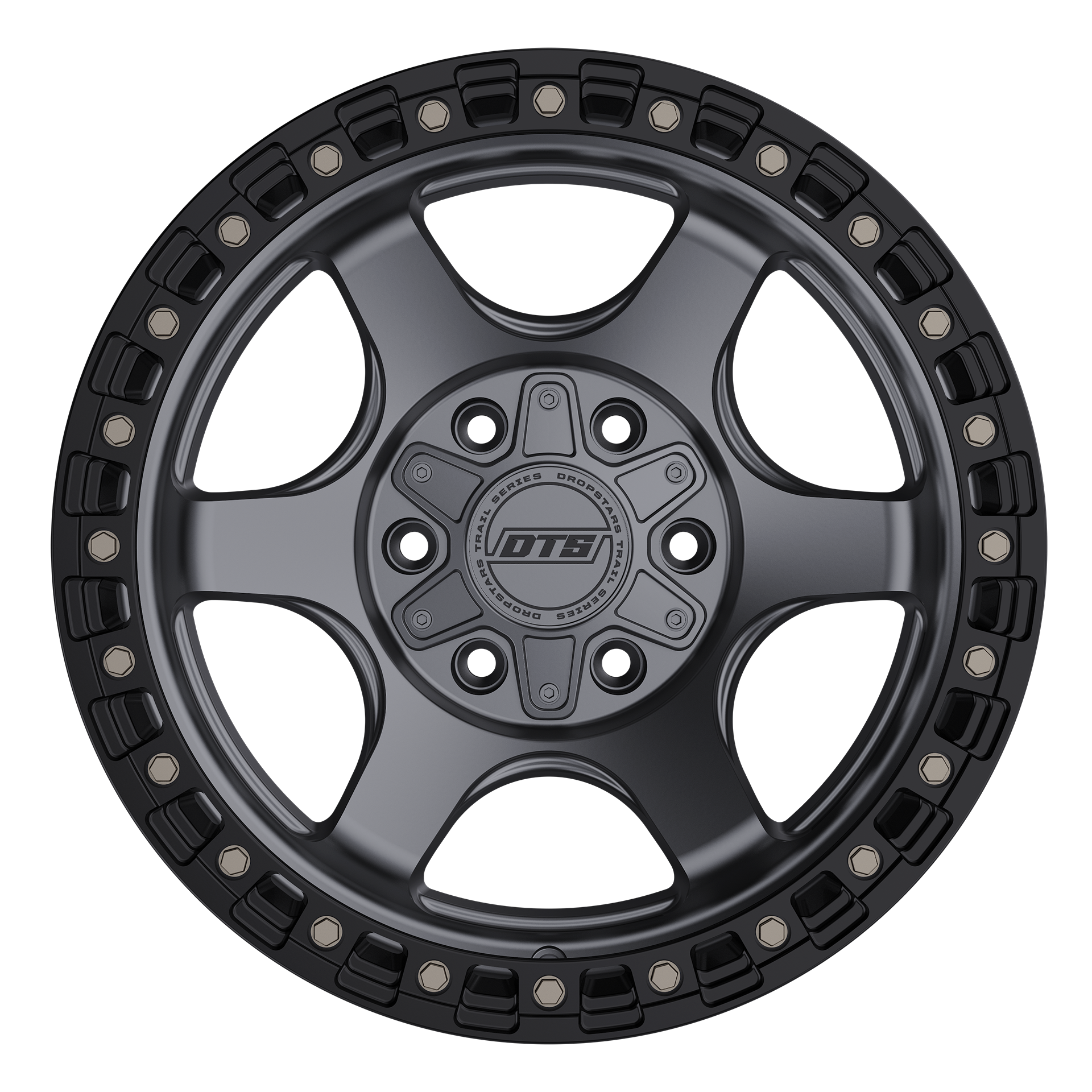

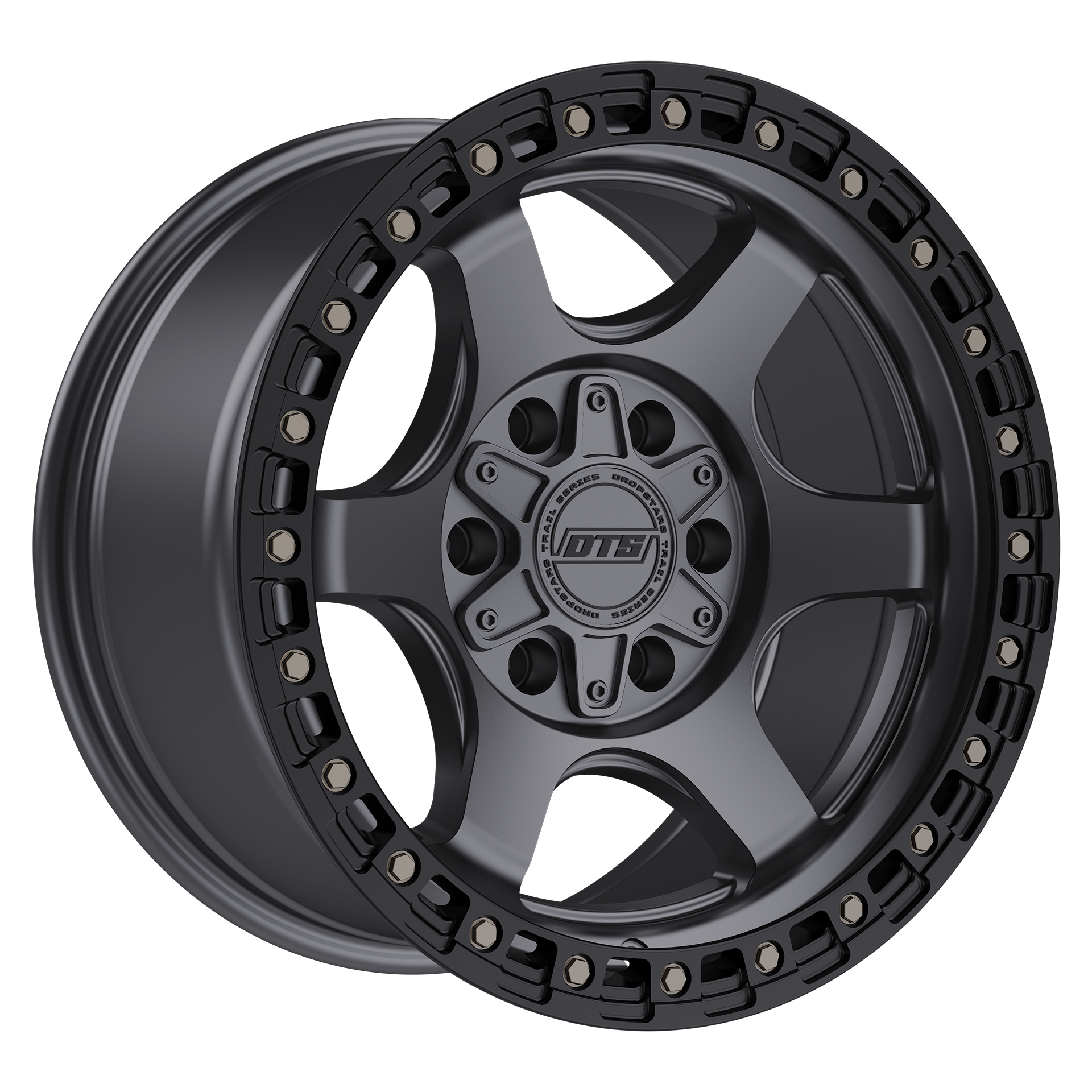

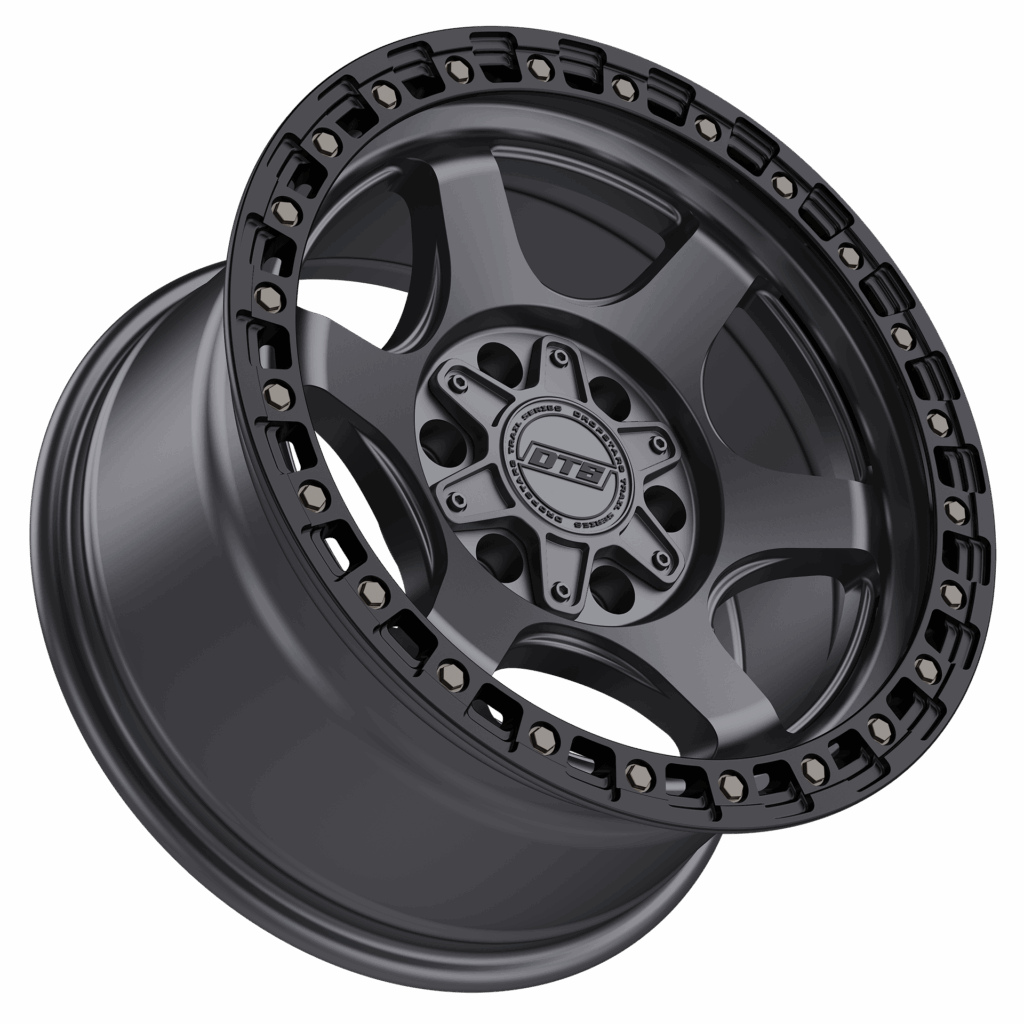

WHEEL STYLE

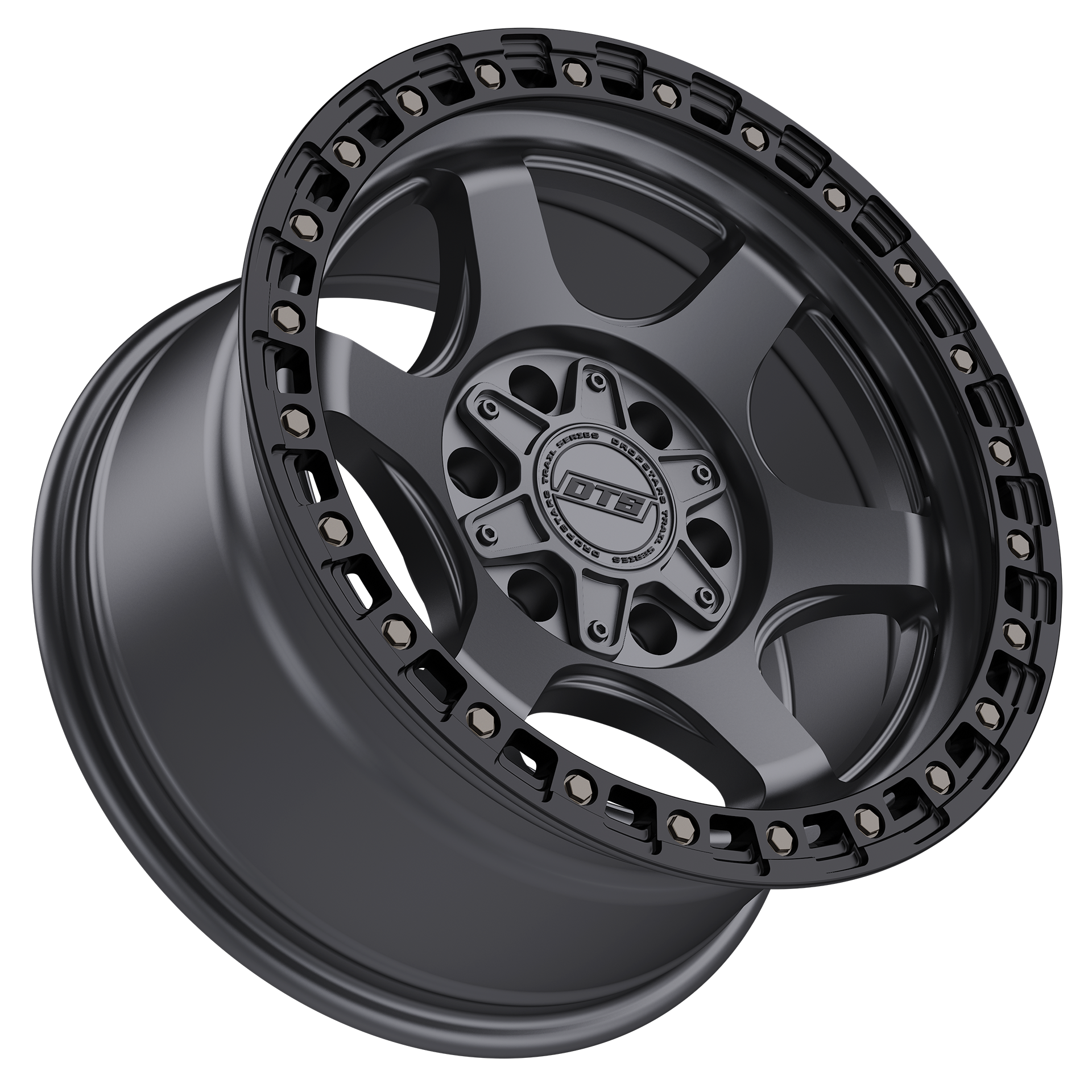

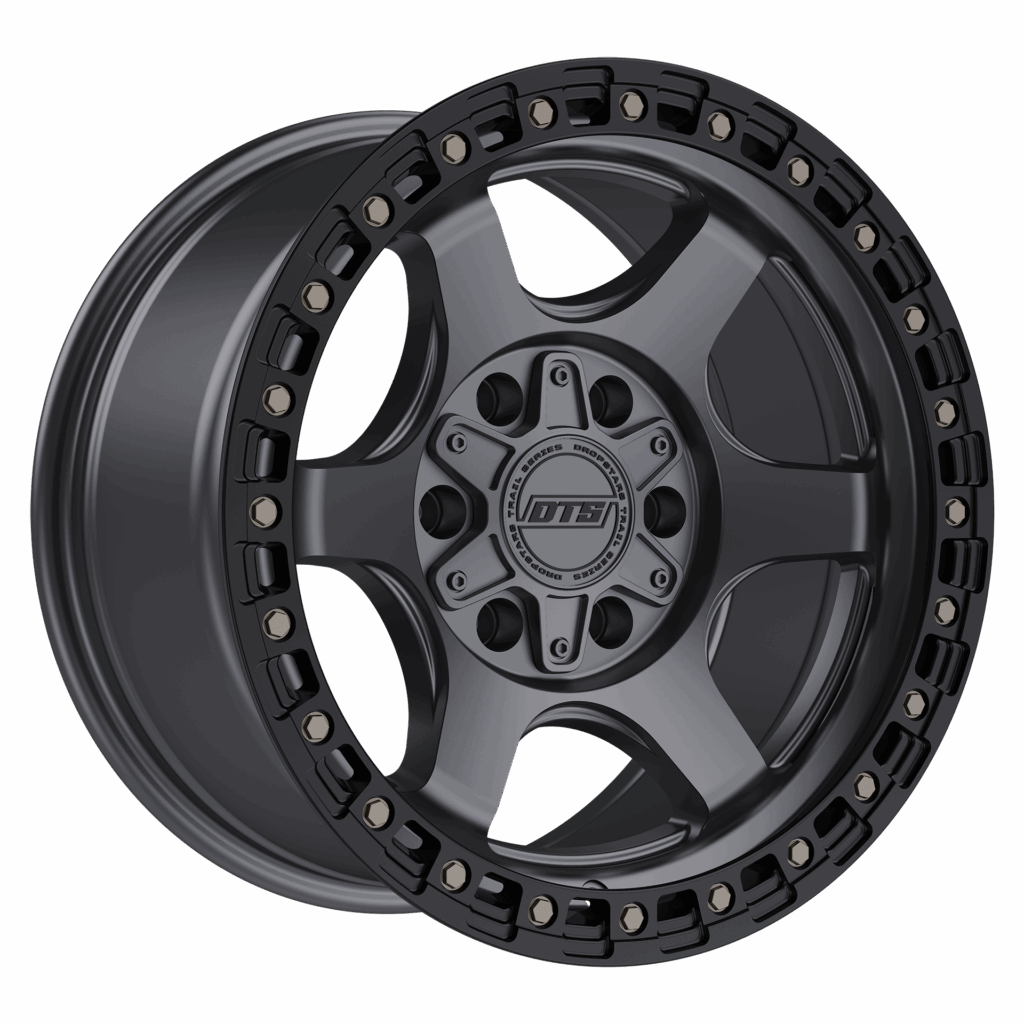

604AB
ANTHRACITE + BLACK LIP
PATENT PENDING
The Dropstars Trail Series 604 is a semi-concave solid 5 spoke design with a rugged multi-bolt beadlock design. Every DTS wheel features the 5 or 6 point centercap and DTS circular emblem.
| Style | Size | Offset | MAP |
| 604AB | 16×8 | 0 | $282 |
| 604AB | 17×9 | -12 | $315 |
| 604AB | 20×9 | 18 | $365 |
| 604AB | 20×10 | -19 | $382 |
604AB SPECS
| Part Number | Style | Finish Name | Size | Lugs | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 604AB-6806800 | 604AB | Anthracite w/ Black Ring | 16X8 | 6 | 6X135 / 6X5.50 | +00 | 4.5 | 106.2 | 2500 | 24.7 |
| 604AB-7900912 | 604AB | Anthracite w/ Black Ring | 17X9 | 5 | 5X5.00 / 5X5.50 | -12 | 4.52 | 78.1 | 2500 | 27 |
| 604AB-7906812 | 604AB | Anthracite w/ Black Ring | 17X9 | 6 | 6X135 / 6X5.50 | -12 | 4.52 | 106.2 | 2500 | 27 |
| 604AB-2100919 | 604AB | Anthracite w/ Black Ring | 20X10 | 5 | 5X5.00 / 5X5.50 | -19 | 4.75 | 78.1 | 2500 | 38 |
| 604AB-2106819 | 604AB | Anthracite w/ Black Ring | 20X10 | 6 | 6X135 / 6X5.50 | -19 | 4.75 | 106.2 | 2500 | 38 |
| 604AB-2096800 | 604AB | Anthracite w/ Black Ring | 20X9 | 6 | 6X135 / 6X5.50 | +00 | 5 | 106.2 | 2500 | 36 |
| 604AB-2096818 | 604AB | Anthracite w/ Black Ring | 20X9 | 6 | 6X135 / 6X5.50 | +18 | 5.71 | 106.2 | 2500 | 36 |
